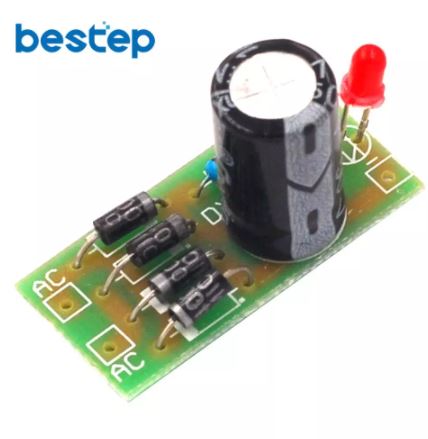

1N4007 AC to DC Power Conversion Module

Description 1N4007 AC to DC Power Conversion Module AC to DC power conversion module 1N4007 bridge rectifier filter Input AC voltage [6V-16V] (capacitance is 25V1000UF) Maximum input and output current [1A] Frequency range [50-60HZ] Wire length (9 cm) PCB size mm [28*13*1.2] Rectified output voltage [output = input x1.414] [Example: input 12V AC, then output 12×1.414 = 16.968V, this is the no-load voltage of the calculation result, only for reference, there will be deviations] This module is a streamlined rectification and filtering module. It is widely used in the rectification and filtering of small transformer output. It is mainly used on electrical appliances that are not very demanding on power supply. This power module is designed to be small and can be placed in a small electrical box. The power supply indicator is designed on the board to make it easy to know the status of the power supply when the power is turned on.
