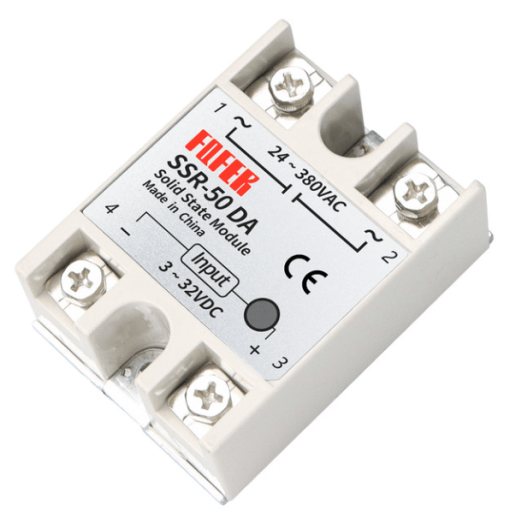

Description SSR-50DA DC-AC 24-380V Solid State Relay Main Application: Industrial automation installment Computer periphery connection AC motor control Automatic fire control and security system Street light,signal light,traffic light,etc Specification Load Current: 50A Load Voltage: 24~380VAC Control Voltage: 3~32VDC Control Current: 3~25MA On Voltage: ≤ 1.5VAC Off Leakage Current: ≤4MA On-off Time: ≤ 10MS Dielectric Strength: 2500VAC Insulation Resistance: 100M Ω /500VDC Ambient Temperature: -25~ 75°C Work instruction: LED Weight 90g Package Includes 1 x SSR-50DA DC-AC 24-380V Solid State Relay
