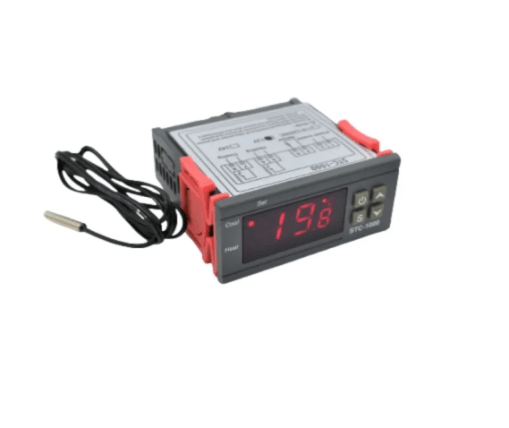

STC-1000 12V Digital Temperature Controller (12V DC, 10A)

Description STC-1000 12V Digital Temperature Controller (12V DC, 10A)   The STC-1000 is a the most common design for 1-stage digital temperature controllers. The controller works as a relay to turn on/off the heating or cooling device depending on the temperature measured through the probe (included). This 12V DC, 10A version is used in battery- and solar-powered applications with relays that can handle 220V AC (max 10A): fans in sheds, fish tanks, aquariums, brewing or fermentation processes, cold rooms etc. Simple and proven design One Relay Output: switch between heating and refrigeration mode according to the device you plug into the controller Maximum output load: 10A (2000W with  220V AC) Specifications Type: STC-1000 12V DC Power supply: 12V DC Relay contact capacity: 10A / 2000W (220V AC) Control accuracy: 1 Operating temperature range: -50 to 99 Measurement probe: NTC10K (stainless steel, 1m cable) Controller ambient environment: 0 to 60 temperature 20 to 85% relative humidity Dimensions (mm): 75 x 35 x 85
