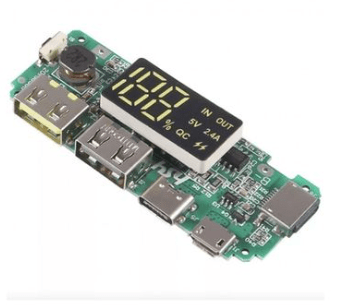

Description Lithium 2.4A 5V Powerbank Charger Module Description Overview: The Lithium 2.4A 5V Powerbank Charger Lithium Charger module comes fitted with a with display and connectivity for Type-C, Micro USB, Lightning, and USB. Ideal to help you build your own power bank. The module comes a few features including a display Button function: Press and hold the button after standby, the LED digital screen displays the power. Note: The positive pole of the battery is connected to B and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!! Features: LED Indicator Display: The LED digital screen displays the current battery charge while charging. When discharging, the LED digital screen displays the current power, and the display is saved in - 30 seconds (double-click the button to resume display). The system will provide an accurate battery indication after a complete charge and discharge. Dual Output Current: 5V 2.4A; Protection: constant current; overcharge protection; over-discharge protection; short circuit protection Specification: Constant Current: 2.4A; Input Voltage B to B-: 3.0 – 4.2V Suggest working temperature: -5~45 Prevent Overcharge Protection: Detection voltage: 4.20 /- 0.05V Release voltage: 4.100 /- 0.05V Detection delay time: less than 200 ms Short Circuit Protection Short detection delay time: less than 50 uS Release Conditions: Cut off load Prevent Over discharge Protection Detection voltage: 3.0 /- 0.10V Release voltage: 3.10 /- 0.10V Detection delay time: less than 100 ms IR of PCM : Less than or equal to 65 momega Material: ABS Normal current consumption of PCM: Max 60uA;Stanby current consumption: Max 50uA Dual Output Current: 5V 2.4A; Size: 6.5 x 2.5cm What’s in the box 1 x Lithium 2.4A 5V Powerbank Charger
