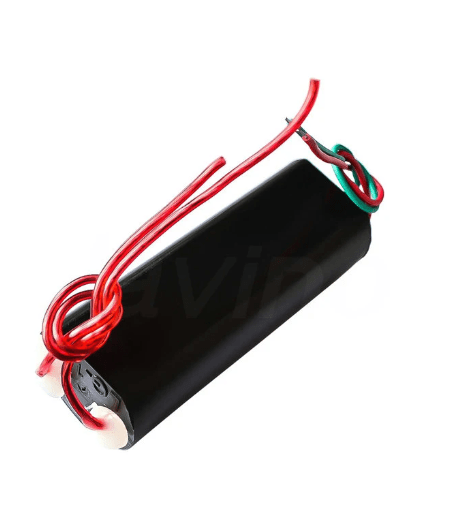

DC 3V-6V 400kV Boost Step up Power Module High Voltage Generator

Description DC 3V-6V 400kV 400000V Boost Step up Power Module High Voltage Generator Description: input voltage: DC 3 V to 6 V Input current: 2 A – 5 A High pressure type: the type of pulse current Output voltage: 400000 v(Please pay attention to safety) High pressure discharge distance between: 10 mm – 20 mm The output high voltage wire length: 100 mm Input power cord length: 100 mm (the red line is positive) Wiring: Red and black power connection red line:” ” black line “-“ output : the other side ,same color cable please notice: the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. ) Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
