DC-DC Step Down Power PCB | Adjustable 1 -36V 3A Display | XL4015

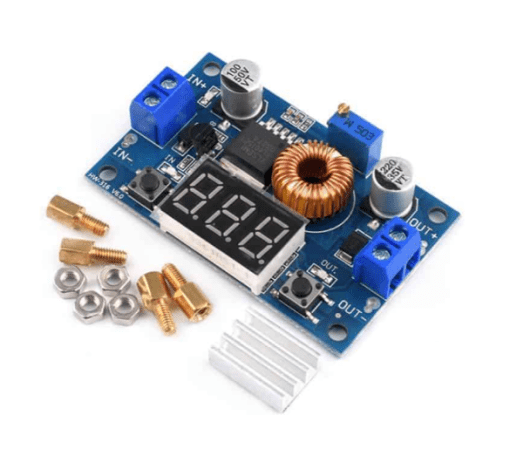

Description DC-DC Step Down Power PCB | Adjustable 1 -36V 3A Display | XL4015   XL4015 DC DC Adjustable Step Down Board 75W 5A LED Voltmeter Power Supply Module 4.0-38V to 1.25V-36V BuckThis product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter.Features:- LED power indicator.- Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turned off by another button. Mentioned states are able to be memorized, is not lost even if the power is disconnected. (On-board marked “IN” LED is turned on, the nixie tube display input voltage value, “OUT” LED bright display is the output voltage value).- Special launch, the voltmeter calibration function, will never exist voltmeter inaccurate!Specifications:- Input voltage range:4 -38VDC(Note: input voltage not exceeding 38V)- Output voltage range:1.25-36VDC adjustable- Output current: 0-5A- Output power: 75W- Voltmeter range: 4 to 40V, error -0.1V- Operating frequency: 180KHz- High efficiency up to 96%- Built in thermal shutdown function- Built in current limit function- Built-in output short protection function- Input reverse polarity protection: None (if required, high current diode in series with the input).- L x W x H =6.63.91.8CM What’s in the box?1 x 8-40V to USB Converter
