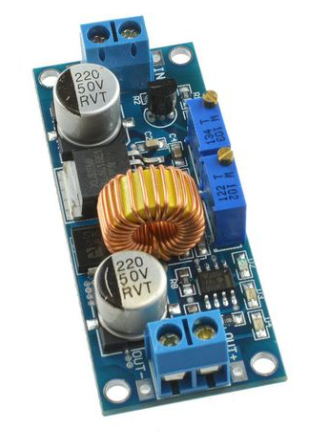

5A CC&CV Buck Step-Down Power Module XL4015

Description 5A CC&CV Buck Step-Down Power Module XL4015   Description Application: – Lithium battery charger – LED Driver Note: – Do not combine connection of input GND and output GND Features: – High power, high efficiency, 5A, low ripple; Three main functions: – Use as an ordinary step-down module with overcurrent protection capabilities; – As the value of various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride – – – – Batteries (battery) charger for solar panels, wind turbines and other occasions – Used as high-power LED constant current driver module; – Having a constant voltage and constant current modes, the indicator light indicates which mode is currently in the module; – When used as a lithium battery charger, you can set the float voltage and charge current, it has a light finger – It is shown being charged or has been filled; – Current limiting protection, output short circuit will not even burn module. Parameters: – Input: IN input positive, IN- input negative – Output way: OUT output positive level, OUT- output negative – Input Voltage: 4-38V – Output voltage: 1.25-36V continuously adjustable – Output current: adjustable, 5A – Output Power: 75W maximum – Operating temperature: -40 to 85 degrees – Operating frequency: 180KHz – Conversion efficiency: up to 96% – Short circuit protection: Yes (limited current 8A) – Over temperature protection: (automatically shut off the output after overtemperature) – Input reverse polarity protection: None, (as required in the input string into a large-current diode) – Installation: four 3mm screws – Connection: terminals or solder terminals, V-IN is the input, V-OUT output – Module Size: Length 61.7mm Width 26.2mm height 15mm – Weight: 25g What’s in the box x1/5A CC&CV Buck Step-Down Power Module XL4015
