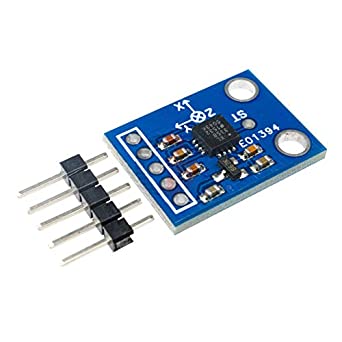

ADXL335 3-axis Analog Output Accelerometer Module

ADXL335 3-axis Analog Output Accelerometer Module is a low power, complete 3-axis accelerometer with signal conditioned voltage outputs. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an on-board voltage regulator and works at both 3.3V & 5V (3-5V). ADXL335 Accelerometer is a Breakout board based on 3-axis ADXL335 IC from Analog Devices. The Analog Accelerometer Module require no external devices and works on 5V power supply. It can be directly interfaced to ADC of a micro-controller without any external components. ADXL335 module can be used to sense motion or tilt (in case of non-moving) in 3-axis. This is the latest in a long, proven line of Analog Sensors- the holy grail of accelerometers. The ADXL335 is a triple axis MEMS accelerometer sensor with extremely low noise and power consumption – only 40uA! The sensor has a full sensing range of /-3g the burst echo to return to the sensor. By measuring the echo pulse width, the distance to target can easily be calculated. Features: Onboard LDO Voltage regulator Can be interfaced with 3V3 or 5V Microcontroller. All necessary Components are populated. Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V Tap/Double Tap Detection Free-Fall Detection Analog output Build in ultra-low noise linear LDO voltage regulator Built-in onboard filters, which reduce noise from the motor and other high current electronics All sensors connected to the I2C bus You can easily select two I2C address for MPU6050 by soldered jumper Power LED Build in Logic level converter for I2C Designed for 5V logic level 3-axis sensing. Small, low-profile package. 10,000 g shock survival. Excellent temperature stability. BW adjustment with a single capacitor per axis. Specifications: Supply Voltage (V): 3 to 6 Each Axis Bandwidth: 50Hz Operating Temperature (°C): -40 to 90 Length (mm): 21 Width (mm): 16 Height (mm): 2.5 Weight (gm): 0.6 Applications: FPV, RC and Robots systems GPS navigation systems Impact recognition and logging Gaming and virtual reality input devices Motion-activated functions Intelligent power saving for handheld devices Vibration monitoring and compensation Free-fall detection 6D-orientation detection Package Includes: 1 X ADXL335 Module 3-axis Analog Output Accelerometer
