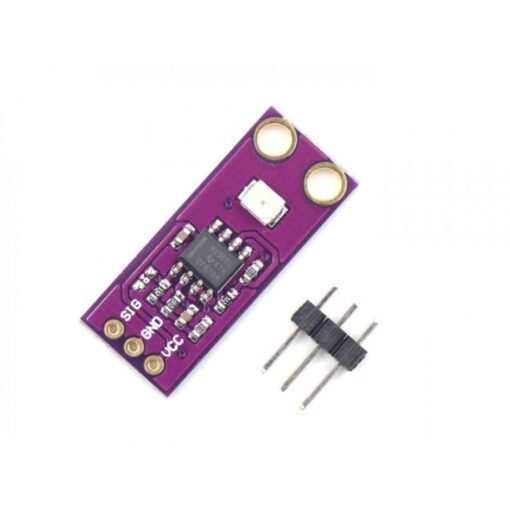

CJMCU-GUVA-S12SD Ultraviolet UV Detection Sensor Module Light Sensor Module is suitable for detecting the UV radiation in sunlight. It can be used in any application where you want monitor for the amount of UV light and is simple to connect to any microcontroller. The Light sensor for UV detection module comes with a typical UV detection wavelength of 240 to 370nm, outputs a calibrated analog voltage which varies with the UV light intensity so basically all you need to do is connect this to an ADC input and read in the value. Specification: Low power consumption, the power supply voltage of 2.5 V ~ 5 V, working current is microamps level Good linear High sensitivity High stability Wide detection range: 240 nm to 370 nm Schottky type photosensitive diode, apply light electric model Specifications: Model: CJMCU-GUVA-S12SD sensor module Power supply voltage: 2.5 V ~ 5 V Wide detection range: 240 nm to 370 nm Wide Angle: 130 degrees Dimension(mm): 11 x 27 Application: UV tester, UV watches, outdoor sports equipment, mobile phone, etc You can use this product, especially the world only in the field of mobile phone specification. And there is a direct corresponding UV INDEX (UV INDEX) of the linear current. Package List: 1 x GUVA-S12SD Ultraviolet light sensor module
