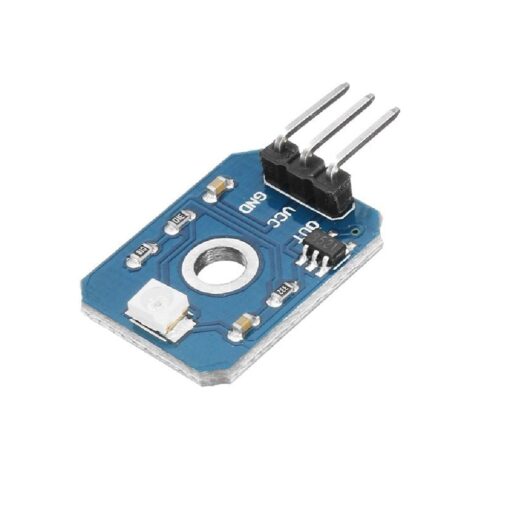

DC3.3V-5V UV Detection Sensor Module Ultraviolet Ray Module for Arduino

The DC3.3V-5V UV Detection Sensor Module is designed to detect ultraviolet (UV) radiation emitted by flames and a wide range of flammable fuels including hydrocarbons, sulfur, hydrazine, and ammonia. It is also ideal for measuring total solar ultraviolet light intensity and adheres to the World Health Organization’s UV Index standards. This Ultraviolet Ray Sensor Module provides a fast response, making it suitable for Arduino and other microcontroller projects involving UV sensing. Features: Measures total solar ultraviolet light intensity effectively Complies with World Health Organization UV Index grading standards Detection wavelength range: 200-370nm covering UVA and UVB spectrum Fast response time (less than 0.5 seconds) Wide operating voltage: 3.3V to 5V Analog output for easy interfacing with microcontrollers Low power consumption with working current around 0.06mA Full interchangeability for consistent readings Specifications: Operating Voltage: 3.3V to 5V Output Voltage: 0 – 1V (analog, corresponds to UV index 0-10) Detection Wavelength: 200-370 nm Response Time: < 0.5 seconds Accuracy: ±1 UV Index Operating Temp. Range: -20°C to 85°C Working Current: Typical 0.06mA, max 0.1mA Module Size: Approx. 26.3 x 14.4 x 5.0 mm Applications: Solar UV radiation monitoring and solar energy optimization Environmental weather stations and UV intensity tracking Health and safety UV exposure monitoring Industrial environments for UV safety compliance DIY UV sensing projects with Arduino and other microcontrollers Smart agriculture and plant growth monitoring based on UV exposure Package Includes: 1 x DC3.3V-5V UV Detection Sensor Module Ultraviolet Ray Module for Arduino
