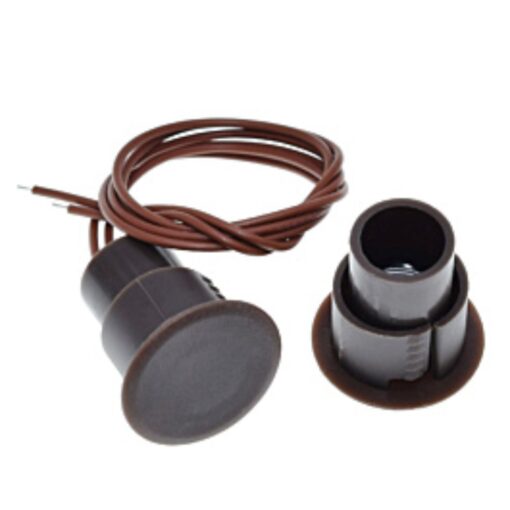

Door Lock Sensor Magnetic Proximity Switch Normally Open RC-36

This is a Door Lock Sensor Magnetic Proximity Switch Normally Open RC-36. Magnetic contact is one of the most reliable sensors for sensing the status of open and close of windows, doors and other devices. It consists of a magnetic sensor (contact switch) and magnetic. The magnetic contact built-in high life-span reed switch, with NO output for connection of intrusion alarm panels, access control systems or other devices. There are two kinds of installation methods for magnetic contact: surface mount installation and recessed mount installation. The Rc-36 is a recessed mount type. Normally Open (NO) : In the default state (when the magnet is not nearby), the circuit is open (no current flows). When the magnet is brought close, the circuit closes (current flows). Opposite of “Normally Closed (NC).” The RC-36 Normally Open magnetic switch is a door lock sensor that stays off (open circuit) until the door/window (with a magnet) is closed. When the door closes and the magnet comes near, the circuit becomes closed, allowing current to flow and signaling the alarm/controller. Specification: Product Name: Magnetic Door Switch Model: RC-36 Contact Type: NO (Normally Open) Max. Actuation Distance: 10mm Max. Current: 0.5A Max. Contact Power: 10W Working Voltage: DC100V Contact Capacity: 300mA Each Size(Approx): 23 x 22.5mm / 0.91 x 0.89-inch (H*D) Cable Length(Each): 25cm / 9.84-inch Material: ABS (Housing) Color: Brown Net Weight: 17g NOTE: These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system. Work as an anti-theft alarm, perfect for metal door and window. Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp! Package Includes: 1 x Door Lock Sensor Magnetic Proximity Switch Normally Open RC36
