AD8232 ECG Sensor Module Heart Rate Monitor Kit

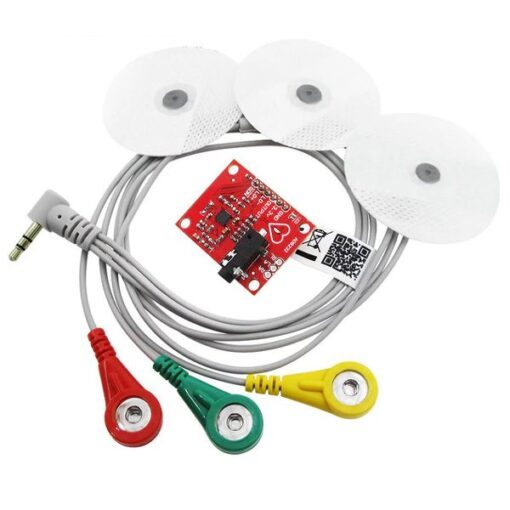

ECG Monitor Sensor Module is based on AD8232 Analog Device IC. AD8232 ECG Sensor Module Heart Rate Monitor is a cost-effective ECG heart monitor kit used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, out AD8232 Single Lead ECG Monitoring Kit acts as an op amp to help obtain a clear signal. This sensor can be connected to an Arduino/Raspberry Pi, etc. Sample codes are easily available on the internet. This ECG Sensor Module for Arduino is an integrated signal conditioning block for ECG and other bio-potential measurement applications. It is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. The Heart Rate Monitoring Sensor AD8232 breaks out nine connections from the IC that you can solder pins, wires, or other connectors to. SDN, LO , LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heart beat. Features : Designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart. AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily. This electrical activity can be charged as an ECG or Electrocardiogram and output as an analog reading. Leads-Off Detection. Shutdown Pin. LED Indicator. Analog Output. 3.5 mm Jack for Biomedical Pad Connection. Specifications: Operating Voltage(VDC): 3.3 Operating Temperature (°C): -40 to 90 Cable Length: 50 CM Length (mm): 36 Width (mm): 30 Height (mm): 18 Weight (gm): 5 Applications: Fitness and exercise heart rate monitoring Portable ECG Remote health care Gaming peripherals Biological signal acquisition Package Includes : 1 x AD8232 ECG Heart Monitoring Module 1 x Sensor cable. 3 x Electrode Pads. Note: This product is for learning development purpose and not for professional medical testing and can also be use as Biomedical ECG Sensor Board for Projects .
