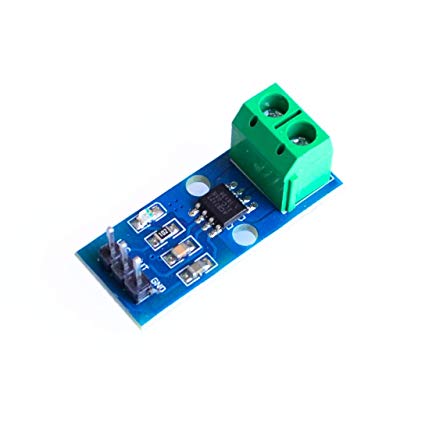

5Amp Current Sensor Module

Description 5Amp Current Sensor Module 5Amp Current Sensor Module gives a precise current measurement for both AC and DC signals. These are good sensors for metering and measuring the overall power consumption of systems. Analogue output, digital hall effect based intergrated 5A current sensor IC module. Uses the Allegro ACS712 IC. Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. This ACS721 current module is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 5A, and the present current signal can be read via analog I / O port of Arduino.    There are also the 20A and 30A version for your choice ACS712 Current Sensor Module – 5A can sense upto 5A of current flow. Sensing and controlling the current flow is a fundamental requirement in wide variety of applications, which includes over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. ACS712 Current Sensor Module – 5A is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 5A, and the present current signal can be read via analog I / O port of a microcontroller or an Arduino. IC: ACS712ELC-05B 5V DC nominal supply voltage, absolute max 8V DC supply. Measurment range: - 5A DC (Positive and Negative reading) Analogue output: 185mV / A , 0A output = Vcc/2 (Half supply) PCB Size: 31mm x 13mm
