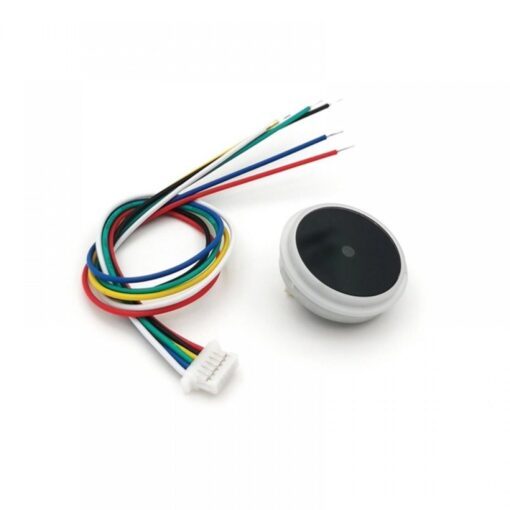

GM861S 640×480 CMOS 1D 2D Bar Code QR Code Reader Module
$54.54
$98.72
GM861S 640×480 CMOS 1D 2D Bar Code QR Code Reader Module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen. GM861S bar code reader module comes with advanced bar code and QR code sensor decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development. Specifications: Model: GM861S Sensor: CMOS Scan Mode: 640*480 Indicator Light: Green light as read successfully Read Code Type: 1D – EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, Coda Bar, Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS) Read Code Type: 2D – QR Code, Data Matrix, PDF417 GM861S Reading Distance: 5-30cm Contrast*: ＞25% Scan Angle**: Roll: 360° Pitch: 65° Yaw: 65° Viewing Angle: 67° (Horizontal) 53° (Vertical) Accuracy of reading*: ≥10mil Interface: TTL-232 Size(mm): Diameter 20.9mm Height 6.2mm Prompting mode: LED Indicator Operating Voltage: 3.3V Operation Current: 70mA(Max) Standby Current: ≤6mA(Typical) Startup time: ≤250mS (Typical) Weight: 2 g Package Includes: 1 x GM861S 640×480 CMOS 1D 2D Bar Code QR Code Reader Module Useful Link: GM861S Datasheet
