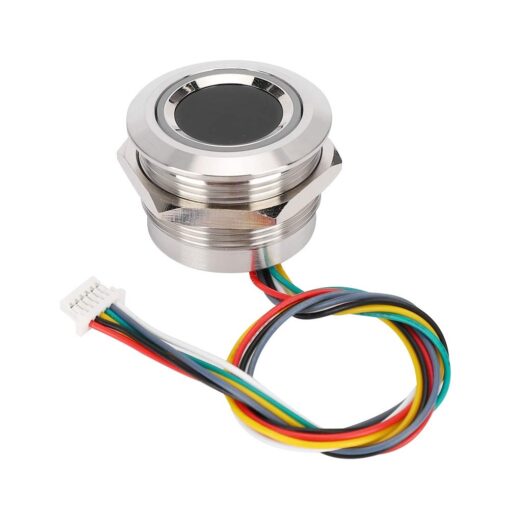

GROW R503 Capacitive Fingerprint Sensor Module With 200 Finger Capacity

The GROW R503 Capacitive Fingerprint Sensor Module With 200 Finger Capacity features a UART interface and can store up to 200 fingerprints. With a 192*192 pixel sensing array and an effective collection area of 15.5mm in diameter, it integrates image collection and algorithm processing in one unit. It adapts well to various finger conditions, ensuring high recognition rates. Ideal for embedding into end products such as access control systems, attendance machines, and safety deposit boxes. This fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on. Features: High adaptability to different finger conditions Integrated image collection and algorithm processing Compact design suitable for various end products High recognition rate for different finger textures Easy integration with UART interface Reliable and accurate fingerprint recognition Fingerprint Capacity: 200 Effective collection area: diameter 15 (mm) Specifications: Interface:RS232 (TTL) Resolution:508 DPI Voltage:DC 3.3V Working current(Fingerprint acquisition):20mA Standby current(finger detection): Typical touch standby voltage: 3.3V, Average current: 2uA Fingerprint capacity:200 Sensing Array:192*192 pixel Fingerprint module external size: diameter 25mm Fingerprint module inner size: diameter 22mm(M22) Fingerprint module height: 15mm Effective collection area: diameter 15mm Connector: SH1.0-6pin LED Color: RGB LED Control: Yes ScanningSpeed:< 0.2 second Verification Speed:< 0.3 second Matching Method:1:1; 1:N FRR (False Rejection Ratio):≤0.01% FAR (False Acceptance Ratio):≤0.00001% Antistatic capacity:15KV Abrasive resistance intensity:1 million times Peak power consumption:60 mA Work environment:-20°C —55°C Work Humidity:0-90% Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) Package Includes: 1 x GROW-R503 Fingerprint Module
