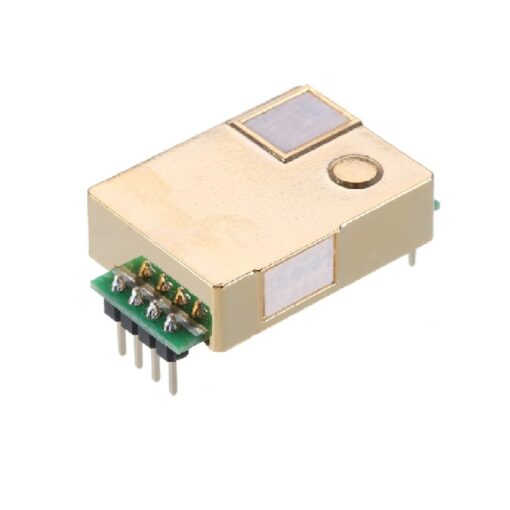

MH-Z19B Infrared CO2 Sensor Module for CO2 monitor

MH-Z19B Infrared CO2 Sensor Module for CO2 monitor is MH-Z19B Infrared CO2 Sensor Module for CO2 monitor. The MH-Z19B NDIR infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of Carbon Dioxide in the air, with good selectivity, non-oxygen dependent and long life. The built-in temperature sensor can do temperature compensation; it has digital output an analog voltage output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design, and superior circuit design. MH-Z19B NDIR infrared gas module is widely used in the HVAC, building ventilation system and indoor air quality monitoring system. Features : High sensitivity, high resolution. Low energy consumption. Output mode: UART and PWM wave. Temperature compensation, excellent linear output. Good stability. Long lifespan. Anti-interference of water vapor. No poisoning. Specifications: Model: MH-Z19B Operating Voltage (VDC): 4.5 to 5.5 Detection gas: Carbon Dioxide (CO2) Average Current(mA): <18 Interface Level: 3.3V Measuring Range: CO2(400-5000ppm) Output Signal: PWM UART Preheat Time(min): 3 Response time: T<60s Dimensions in mm (LxWxH): 33x20x9mm Weight (gm): 21 Package Includes : 1 x MH-Z19B NDIR CO2 sensor for indoor air quality monitoring Useful Link: MH-Z19 Infrared CO2 Sensor User Manual
