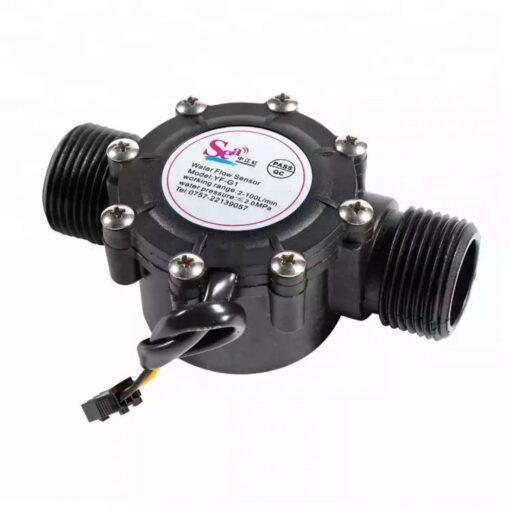

DN25 YF-G1 Large Water Flow Sensor 1 inch

DN25 YF-G1 Large Water Flow Sensor 1 inch is used for flow measurement it consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine. Features:  Compact, Easy to Install High Sealing Performance High Quality Hall Effect Sensor RoHS Compliant Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min Specifications: Model:DN25 YF-G1 Minimum Working Voltage:4.5V DC Working Voltage:DC 5V~18V Flow Rate Range:2~100L/min Water Pressure Resistance:>2MPa Operating Temperature:-20~85 DegC Insulation resistance:>100MΩ Accuracy:±3% Connector type:G1 Length (mm):114 Width (mm):60 Height (mm):48 Weight (gm):7 Application: Suitable to detect flow in water dispenser, coffee machine, Industries, swimming pool, irrigation, etc. Package Includes: 1 x DN25 YF-G1 large flow water sensor for industries/ swimming pool/ irrigation
