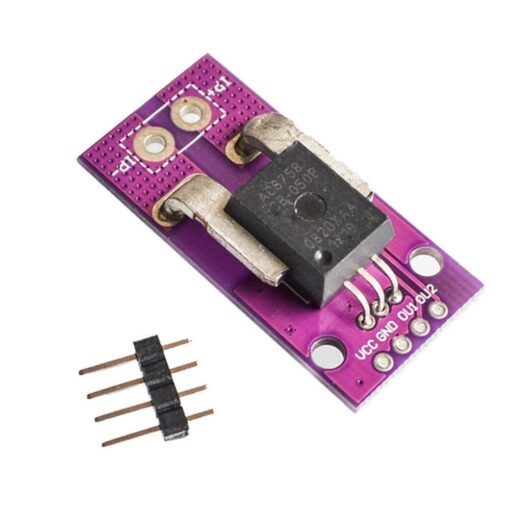

MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module

This MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module. Features: Small in size, with easy mounting capability. Monolithic Hall IC for high reliability Extremely stable output offset voltage Factory-trimmed for accuracy. Nearly zero magnetic hystereses. Specifications: Model Type: Hall Current Sensor Operating Current (mA): 13.5 mA Storage Temperature (°C): -65 °C – 165 °C Output Current (mA): 3 mA Bandwidth (KHz): Internal – 120 KHz Detection range: ±50A Linearity (mV/A): 40 Operating Temperature (°C): -40 to 150 Weight: 8 g Module Size: 37 X 18 The relationship between voltage output and current input: VOUT = VOUT(Q) Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP to IP-. For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2 40mV/A x10A=2.9V. Package Includes: 1 x MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module
