Digital Oscilloscope DIY Kit

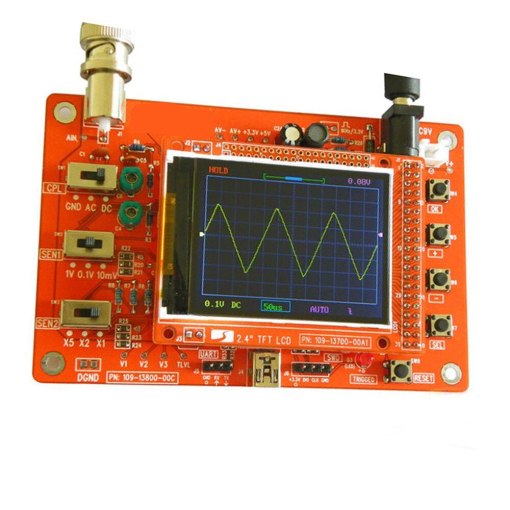

Description 1Msps Digital Oscilloscope DIY Kit Probe Unsoldered Flux Workshop STM32 200Khz assemble Digital Oscilloscope DIY Kit Training for electronic production, complete detailed descriptive information, including schematics, production guidance, instructions, troubleshooting methods , etc., making a high success rate. Component species diversity for students to identify elements, inline elements welding, soldering SMD components training. Students can get in at the same time making a practical tool for audio, video synchronization, low-frequency switching power supply, infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes. Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board . Available source, the ability of a friend can be secondary development kit based on, for example, it can be changed to Millivoltmeter, data loggers and so on . Circuit is simple, reliable, inexpensive Performance: Maximum real-time sampling rate: 1Msps Accuracy: 12Bit Sampling buffer depth: 1024 bytes Analog bandwidth: 0 – 200KHz Vertical Sensitivity: 10mV / Div – 5V / Div (1-2-5 progressive manner) Adjustable vertical displacement, and with instructions Input impedance: 1M Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Coupling modes include DC / AC / GND The horizontal time base range: 10 s / Div – 50s / Div (1-2-5 progressive manner) With automatic, regular and one-shot mode, easy to capture the moment waveform Available rising or falling edge trigger Adjustable trigger level position , and with instructions Observable trigger waveform before ( negative delay ) Can freeze at any time waveform display (HOLD function ) Comes 1Hz /3.3V square wave test signal source Package Included: 1 x DS0138 Digital Oscilloscope DIY Kit Probe Unsoldered Flux Workshop STM32 200KHz
