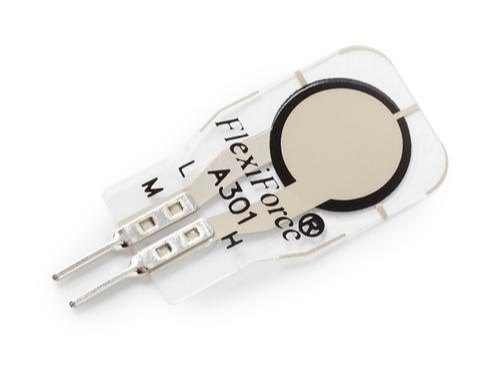

FlexiForce A301-100 lbs Force Sensor

FlexiForce A301-100 lbs Force Sensor is optimized for high volume manufacturing and ideal for embedding into products and applications. The sensor has a force range of 0 – 100 lb. The force ranges stated are approximations. In order to measure forces above 100 lbs (up to 1000 lbs), apply a lower drive voltage, and reduce the resistance of the feedback resistor. Features: Small size is ideal for prototyping and integration Available with Enhanced Stability Series (ESS) pressure-sensitive ink for high-temperature and high-humidity environments Thin and flexible Easy to use Typical Performance: Linearity (Error):  < ±3% of Full Scale (Line drawn from 0 to 50% load) Repeatability:  < ±2.5% (Conditioned Sensor, 80% of Full Force Applied) Hysteresis:  < 4.5 % of Full Scale (Conditioned Sensor, 80% of Full Force Applied) Drift:  <5% / logarithmic time (Constant Load of 25 lb (111 N)) Response Time:  < 5 µsec (Time required for the sensor to respond to an input force; Impact load – recorded on Oscilloscope) Operating Temperature:  -40°C – 60°C (-40°F – 140°F) Specifications: Thickness: 0.203 mm Length: 25.4 mm Width: 14 mm Sensing Area diameter: 9.53 mm Pin Spacing: 2.54 mm (0.1 in.) Connector: 2-pin Male Square Pin Substrate: Polyester Applications: Testing and Measurement Equipment Embedded Electronics OEM Development Kit Consumer Electronics Multimeter Package Includes: 1 x FlexiForce A301-100 Force Sensor
