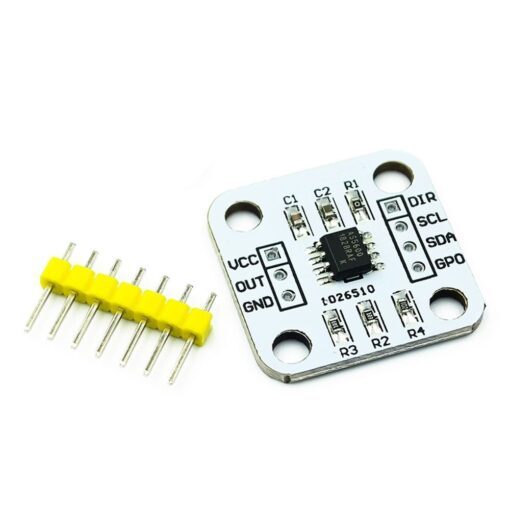

AS5600 Absolute Encoder 12 Bit Precision Angle Measurement Sensor with Magnet Wheel

AS5600 Absolute Encoder 12 Bit Precision Angle Measurement Sensor with Magnet Wheel detects rotational position information as changes of the magnetic field, converts them into electrical signals, and outputs them. The Hall element is a magnetic sensor that uses the phenomenon of the Hall effect to output a voltage proportional to the strength of the magnetic field. Features: 12-bit DAC output resolution Non-contact magnetic induction angle measurement module. High precision, a variety of output modes: IIC, PWM, and voltage. Specifications: Model: AS5600 Encoder Operating Temperature Range: -40°C to 125°C Power supply: 3.3V DC Resolution: 12-bit DAC output Length: 23mm Height: 3 mm Width: 23mm Weight: 24g Pins: VCC: 3.3V GND: Power ground Out: PWM / analog voltage output DIR: Direction of rotation SCL: IIC The communication clock line SDA: IIC Data communication line GPO: Mode selection Package Includes: 1 x AS5600 Magnetic Encoder 12 Bit Precision Angle Measurement Sensor with Magnet Wheel
