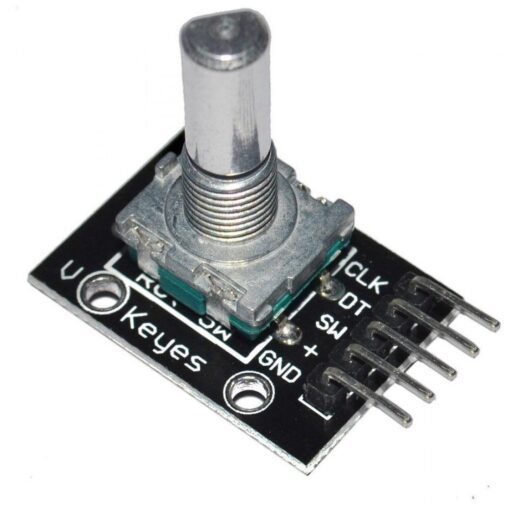

Rotary Decoder Encoder Module KY-040 for Arduino

The Rotary Decoder Encoder Module KY-040 for Arduino is an incremental electro-mechanical device that converts the angular position or motion of a shaft or axle to digital code. The output of incremental encoders provides information about the motion of the shaft, which is typically further processed in processor / controllers into information such as speed, distance, and position By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer counter, which Species rotation counts are not limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0. The output of incremental rotor encoders provides information about motion of shaft, which is typically further processed in processor/controllers into information such as speed, distance and position. Features: Incremental Encoder Left/Right rotary output pulse, each circle with 20 pulse Built in 10k resistor Specification: Model: KY-040 Type: Incremental Encoder Cycles per revolution (CPR): 20 Working voltage: 0 – 5V Material: PCB Brass Dimension: 32 x 19 x 30mm Weight: 10 g Package Includes: 1 x Rotary Decoder Encoder Module KY-040 Documents: Schematic Arduino Sample Code bildr Tutorial KY-040 Connections to Arduino Package Includes: 1 x KY-040 Rotary Encoder Module Note: Kindly note that threading is not there in Rotary knob.
