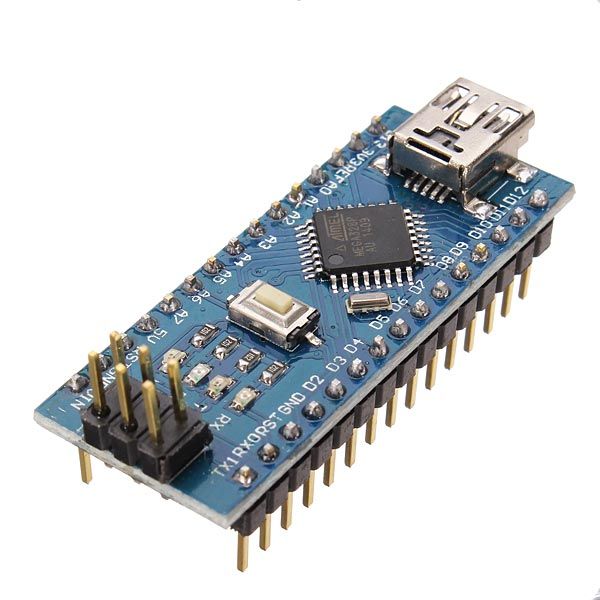

Nano Board R3 with CH340 chip without USB Cable compatible with Arduino (Soldered)
$62.45
$119.9
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) or ATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. Programming Instruction: Select Board -> “Arduino Nano” Select Processor -> “ATmega328P(Old Bootloader) Features of Nano Board R3 with CH340 chip without USB Cable compatible with Arduino (Soldered): Microcontroller : Atmel ATmega168 or ATmega328. Operating Voltage (logic level) : l5 V. Input Voltage (recommended) : 7-12 V. Input Voltage (limits) : 6-20 V. Digital I/O Pins : 14 (of which 6 provide PWM output). Analog Input Pins : 8. DC Current per I/O Pin : 40 mA. Flash Memory : 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by boot loader. SRAM : 1 KB (ATmega168) or 2 KB (ATmega328). EEPROM : 512 bytes (ATmega168) or 1 KB (ATmega328). Clock Speed : 16 MHz. Dimensions : 0.73″ x 1.70″. Length : 45 mm. Width : 18 mm. Weigth : 5 g. Applications of Nano Board R3 with CH340 chip without USB Cable compatible with Arduino (Soldered): It is used in Arduino projects. SKU: RM001288 Category: Arduino Board and Accessories Warehouse Code: R00017-S02-P01-Z01
