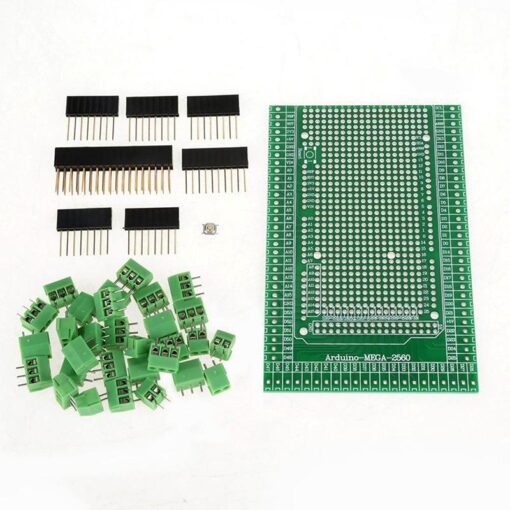

Mega 2560 Prototype Screw Terminal Block Shield Board For Arduino (UnSoldered)

Mega 2560 Prototype Screw Terminal Block Shield Board For Arduino Unsoldered includes Prototype PCB, Terminal Blocks, Female Header Sockets which are soldered making it flexible to use. Screw shields are easy for extending the Mega terminals as shield. This Arduino Screw Shield is Pre-Assembled so that it can be directly screwed onto the thread posts. It is reliable and convenient. Note : This Mega 2560 Prototype Screw Terminal Block Shield is Unsoldered and you have to soldered it after purchase. For Soldered Screw Shield – CLICK HERE PCB:  FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm Pads grid / pitch 2.54mm / 0.1″, hole diameter 0.8mm Terminal block pitch 3.5mm / 0.138″, hole diameter 1.2mm Terminal Block: Pitch 3.5mm / 0.138″ mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ) Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass Female Header Socket: Pitch 0.1″/2.54mm, pin length 15mm / 0.59″ Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs Package includes: 1 x Arduino Mega 2560 Shield Prototype Screw Terminal Block Board For Arduino (UnSoldered)
