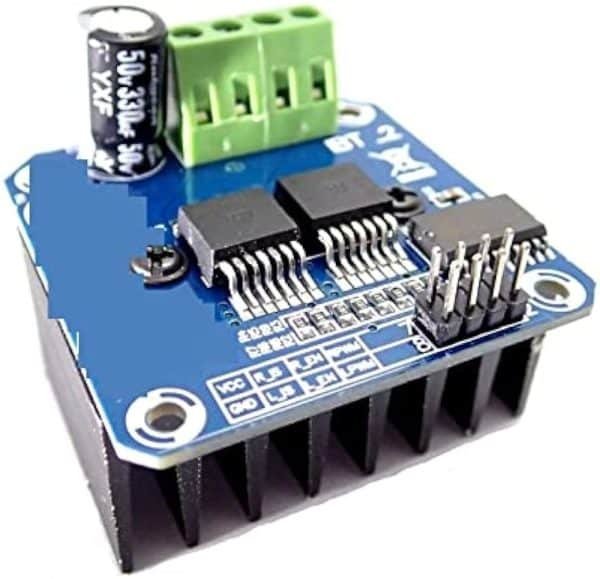

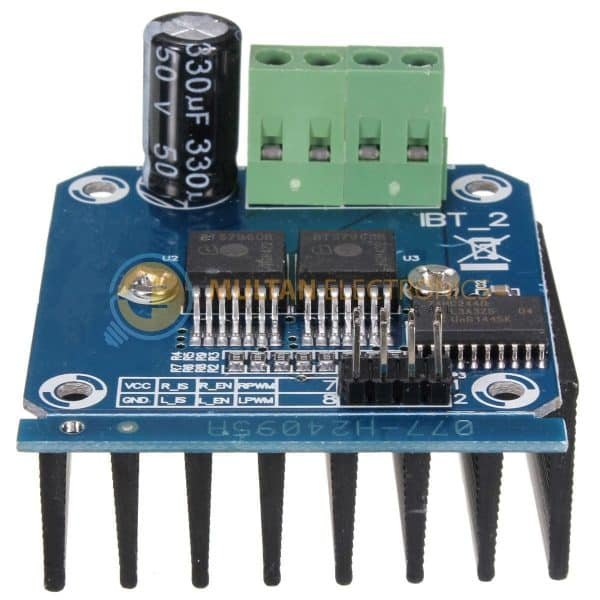

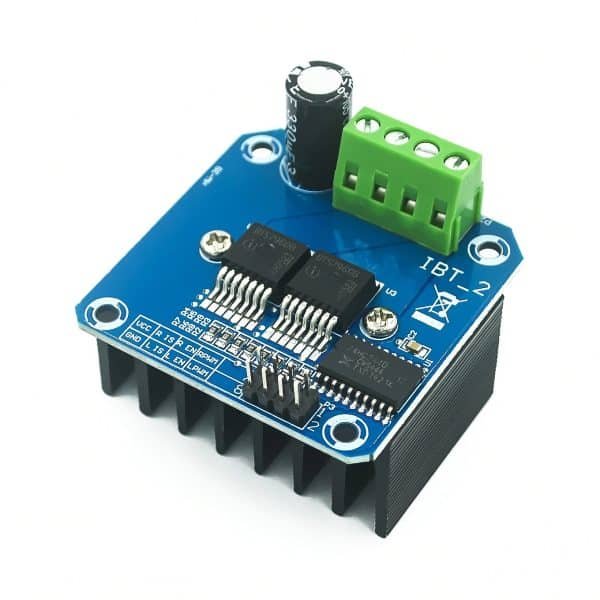

BTS7960 Double H-Bridge Motor Driver Module 43A (IBT2)

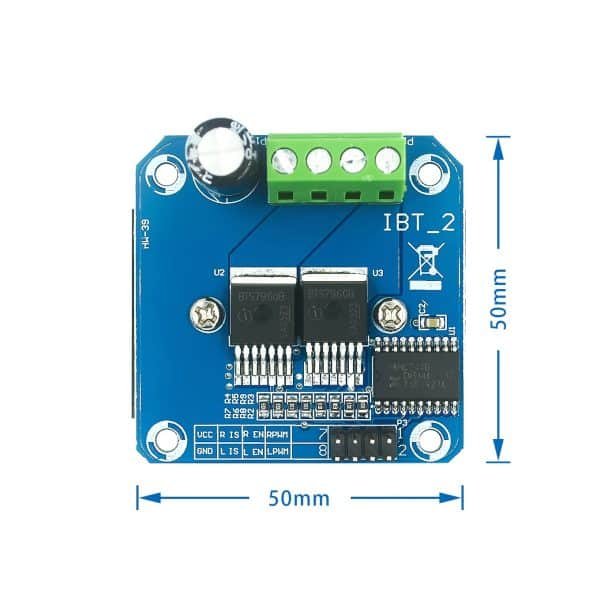

OverviewThe BTS7960 Double H-Bridge Motor Driver Module 43A (IBT2) is a high-performance motor driver designed for makers, students, and engineers who need robust DC motor control. With a German-engineered BTS7960 chipset, the board delivers smooth PWM speed control, bidirectional drive, and built-in protection features suitable for robotics, automated vehicles, and heavy-duty motor systems.Key FeaturesDual H-Bridge output – control motor direction or drive two motors independently.High current capability – 43A continuous output with peaks up to 60A for short bursts.Wide supply range – accepts 6V to 27V DC for small to large motor setups.PWM-compatible logic – standard EN, PWM, and IN pins for microcontroller control.Thermal and over-current protection built into the BTS7960 chipset for safer operation.Large heatsink and solid construction for sustained performance under load.Heavy-duty screw terminals for reliable high-current wiring.Detailed SpecificationsModel: BTS7960 43A (IBT2)Voltage Input: 6V to 27V DCOutput Current: Continuous 43A, peak up to 60AControl Interface: Standard logic level pins (PWM, EN, IN)Cooling: Large integrated heatsink for continuous operationDimensions: Approx. 48mm x 53mmCompatibility: Arduino, Raspberry Pi, STM32 and most microcontrollersWhy Choose the BTS7960 43A ModuleThis module is not only about raw current. It provides precise motor control thanks to PWM handling, robust thermal management, and safety features inside the BTS7960 chipset. That combination makes it ideal for demanding applications where reliability matters.Built-in ProtectionsOver-temperature shut down to protect the module under sustained heavy load.Over-current handling for short peaks to prevent damage to the IC and wiring.Stable switching behavior for reduced motor noise and smooth torque delivery.Typical ApplicationsRobotics projects requiring high torque motorsDIY smart cars and automated vehiclesMotorized gates and heavy DC motor systemsArduino-based control circuits and classroom lab projectsAgricultural automation and prototype industrial drivesWiring and Integration TipsUse appropriately rated power and motor wires to handle high current and reduce voltage drop.Place capacitors close to the motor power input to suppress voltage spikes when motors change speed or direction.Drive the logic pins with standard 5V or 3.3V microcontroller outputs depending on your controller, but verify logic levels for safe operation.Ensure good airflow around the heatsink or add external cooling for continuous heavy loads.Compatibility and ExamplesThe module works well with Arduino, Raspberry Pi (with level shifting for GPIO if needed), STM32, and other microcontrollers. Typical code uses PWM signals for speed control and logic pins for direction. Example use cases include motor speed control libraries and H-Bridge driver sketches found in many robotics tutorials.What You GetOne BTS7960 Double H-Bridge Motor Driver Module 43A (IBT2)Easy-to-use pinout and screw terminals ready for power and motor connectionsTechnical support and documentation from ColgroadBuy with ConfidenceColgroad delivers quality electronic components with a focus on value and support. Whether you are building a classroom robot or a prototype vehicle, the BTS7960 43A motor driver module gives you strong, reliable motor control and protection. Fast delivery across Pakistan and expert support available.Order NowReady to power up your project? Purchase the BTS7960 Double H-Bridge Motor Driver Module 43A (IBT2) from Colgroad and gain reliable PWM motor control for high-current applications.Note: Images are for illustration purposes only. Categories: Boards, Modules and Accessories, Motors, Drivers and Wheels Tags: 43A Motor Driver, BTS7960, DC Motor Controller, Double H-Bridge, H-Bridge Motor Driver, High-Current Driver, Motor Driver Module, Power Motor Driver College Road Electronics4.85 (317 Reviews)
