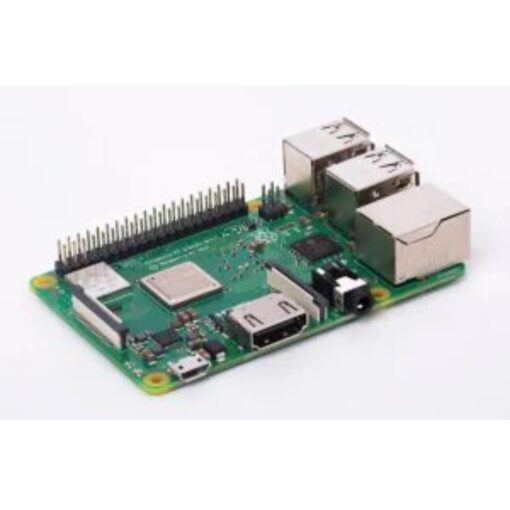

Raspberry Pi 3 Model B 3B BCM2837B0 SoC IoT PoE Enabled

The Raspberry Pi 3 Model B 3B BCM2837B0 SoC IoT PoE Enabled is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The secret sauce that makes this computer so small and powerful is the Broadcom BCM2837, an ARM Cortex-A53 64-bit Quad-Core Processor System-on-Chip operating at 1.4GHz. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG and 1080p30 H.264 high-profile decode. It is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of a general-purpose computer. What does that all mean? It means that if you plug the Raspberry Pi 3 B into your HDTV, you could watch Blu-ray quality video, using H.264 at 40MBits/s. The Raspberry Pi 3 B has four built-in USB ports that provide enough connectivity for a mouse, keyboard or anything else that you feel the RPi needs. But if you want to add even more, you can still use a USB hub. Keep in mind, it is recommended that you use a powered hub so as not to overtax the onboard voltage regulator. Powering the Raspberry Pi 3 B is easy just plug and Play with 5V/2.5A USB power supply into the micro USB port. There’s no power button, so the RPi will begin to boot as soon as power is applied. To turn it off, simply shut down the Pi 3 B , then remove power. The four built-in USB ports can even output up to 1.2A, enabling you to connect more power-hungry USB devices. On top of all that, the low-level peripherals on the RPi make it great for hardware hacking. The 0.1″ spaced 40-pin GPIO header on the RPi gives you access to 27 GPIO, UART, I2C, SPI, as well as 3.3 and 5V sources. Each pin on the GPIO header is identical to its predecessor, the Model 3. If you are planning to run a NOOBS card with the RPi3 B make sure that it is up to date with the latest version! The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B. What is new on the Raspberry Pi 3 B ? Older Raspberry Pi 3 B 1.2 GHz ARM Cortex-A53 Quad-Core-CPU WLAN 802.11 b/g/n LAN RJ45 10/100 Mbit New Raspberry Pi 3 B 1.4 GHz ARM Cortex-A53 Quad-Core-CPU WLAN 802.11 b/g/n/ac (2,4 5,0 GHz) LAN RJ45 10/100/1000 Mbit (Gigabit LAN over USB 2.0 with up to 300 Mbit) At the remaining components and connections as well as the form factor nothing has changed, thus the full compatibility with the existing accessories are guaranteed! Features:  Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz 1GB LPDDR2 SDRAM 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps) Extended 40-pin GPIO header Full-size HDMI 4 USB 2.0 ports CSI camera port for connecting a Raspberry Pi camera DSI display port for connecting a Raspberry Pi touchscreen display 4-pole stereo output and composite video port Micro SD port for loading your operating system and storing data 5V/2.5A DC power input Power-over-Ethernet (PoE) support (requires separate PoE HAT)  Package Includes: 1 x Raspberry Pi 3 Model B , BCM2837B0 SoC, IoT, PoE Enabled Useful Links: Downloads from Raspberry Pi Setting up your Raspberry Pi Accessing your Raspberry Pi remotely
