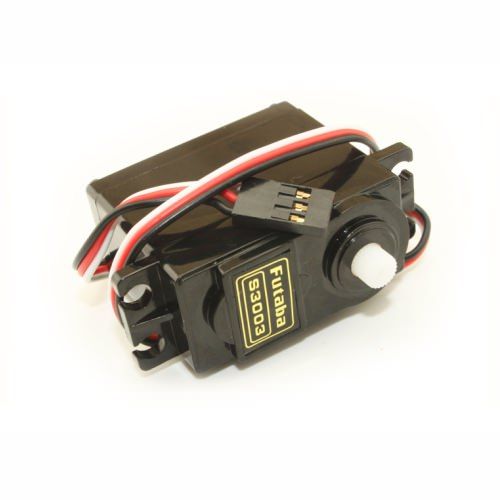

Futaba S3003 Servo Motor 3.2 KG Torque

The Futaba S3003 Plastic Geared Servo Motor is a decent servo for every hobbyist and electronics student. The powerful motor is PWM controlled for easy interfacing. Features of Futaba S3003 Servo Motor 3.2 KG Torque. Control System: Pulse Width Control 1520usec Neutral Required Pulse: 3-5 Volt Peak to Peak Square Wave Operating Voltage: 4.8-6.0 Volts Operating Temperature Range: -20 to 60 Degree C Operating Speed (4.8V): 0.23sec/60 degrees at no load Operating Speed (6.0V): 0.19sec/60 degrees at no load Stall Torque (4.8V): 44 oz/in. (3.2kg.cm) Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm) Operating Angle: 45 Deg. one side pulse traveling 400usec Continuous Rotation Modifiable: Yes Direction: Counter Clockwise/Pulse Traveling 1520-1900usec Current Drain (4.8V): 7.2mA/idle Current Drain (6.0V): 8mA/idle Motor Type: 3 Pole Ferrite Potentiometer Drive: Indirect Drive Bearing Type: Plastic Bearing Gear Type: All Nylon Gears Connector Wire Length: 12" Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm) Weight: 1.3oz. (37.2g) Applications of Futaba S3003 Servo Motor 3.2 KG Torque. It is used in Electronic projects. Robotic projects using 8051/AVR/PIC/ARM/NXP/Infineon microcontroller. Also Searched as: futaba s3003 servo motor, futaba s3003 datasheet, futaba s3003 arduino, futaba s3003 spec, servo motor futaba s3003, futaba s3003 cad, futaba s3003 pinout, futaba s3003 standard servo. SKU: RM000849 Category: Servo Motors Warehouse Code: R00017-S02-P03-Z01
