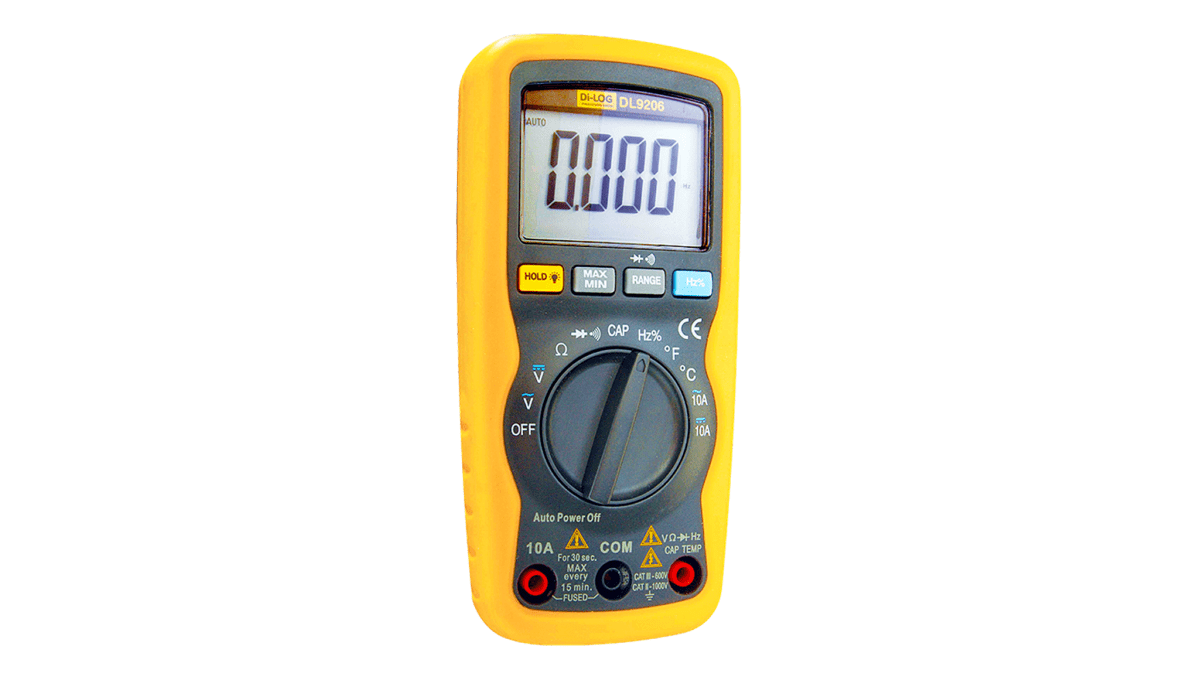

The DL9206 is our best selling compact digital multimeters with a double moulded rubber & plastic housing featuring an oversized high contrast 6000 count LCD display. With full protection on all ranges, temperature and safety category rating of CAT III 600 V, the DL9206 is a fantastic choice for most electrical engineers with the most demanding of applications. Key Features: 61 segment analogue bar graph Max/Min recording mode Temperature reading in °C and °F Capacitance measurement from 10pF Backlit LCD display Continuity buzzer Resistance to 40MΩ Audible continuity Data hold Specifications Measurement Range Basic Accuracy AC voltage 1.0 mV – 750 V /- 1.5 % 3 digits DC voltage 0.1 mV – 1000 V /- 1.2 % 2 digits AC current 1 mA – 10 A /- 1.8 % 7 digits DC current 1 mA – 10 A /- 2.5 % 5 digits Resistance 0.1 Ω – 60 MΩ /- 1.2 % 2 digits Capacitance 10 pF – 4000 µF /- 3.0 % 5 digits Frequency 0.001 Hz – 2.999 MHz /- 1.2 % 3 digits Temperature -20°C to 760°C /- 3.0 % 3 digits Diode test 0.3 mA typical 1.5 V DC Power supply 1 x 9 V PPS alkaline battery (supplied) Dimensions 150 x 70 x 48 mm Weight 255 g
