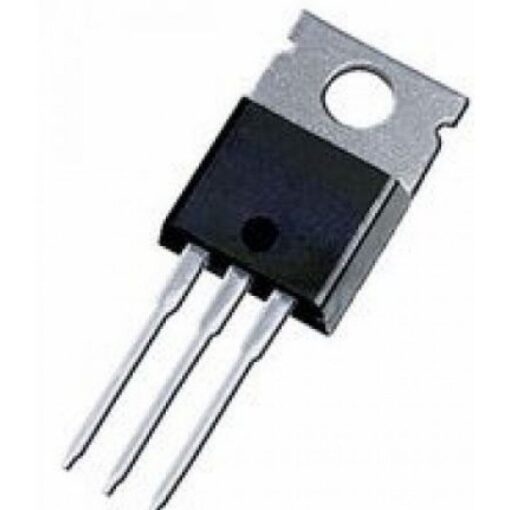

TIP32C PNP Bipolar Power Transistor 100V 3A TO-220 Package
$12.6
$18.02
TIP32C PNP Bipolar Power Transistor 100V 3A TO-220 Package is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- Low saturation voltage Simple drive requirements High safe operating area For low distortion complementary designs Easy to carry and handle Specifications: Transistor Polarity: PNP Collector−Emitter Voltage (VCEO): 40VDC Collector−Base Voltage (VCBO): 40VDC Continuous Collector Current (Ic): 3ADC Continuous Base Current (Ib): 1ADC Emitter Base Voltage (VEBO): 5VDC Power Dissipation (Pd): 40W Operating Temperature Range: -65 – 150°C DC Current Gain (hFE): 18537 Package Includes: 1 x TIP32C PNP Bipolar Power Transistor
