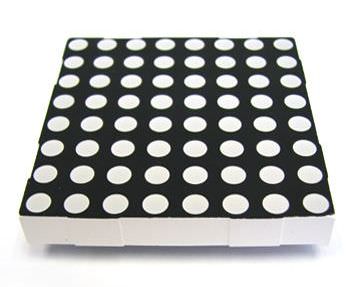

8 x 8 Dot Matrix Led Display (Small)

The 8×8 matrix is a common anode type LED display unit. A single matrix is formed by sixty – four LED’s arranged in eight columns and eight rows (8 x 8). The anodes of the five LED’s forming one row are connected together. Similarly, the cathodes of the eight LED’s of a column are connected together. In this arrangement of LED’s, the cathodes are switched to turn the LED’s of a row ON or OFF. Features of 8 x 8 Dot Matrix Led Display: 8 x 8 LED matrix. Red LED’s. Digital device Interface. Easy to Control. Operating Voltage: 5 V. Applications of 8 x 8 Dot Matrix Led Display: All types of electrical/electronic projects. DIY matrix display unit. 8051/AVR/ARM/PIC / NXP / Infinion / Arduino/Raspberry based matrix led display. Also Searched as: 8×8 led matrix datasheet, 8×8 led matrix tutorial, 8×8 led matrix arduino, 8×8 led matrix pin configuration, controlling an 8×8 led matrix, 8×8 led matrix driver, 8×8 led matrix circuit diagram, 8×8 led matrix arduino 74hc595. SKU: RM000931 Category: LED Dot Matrix Display Warehouse Code: R00016-S02-P03-Z01
