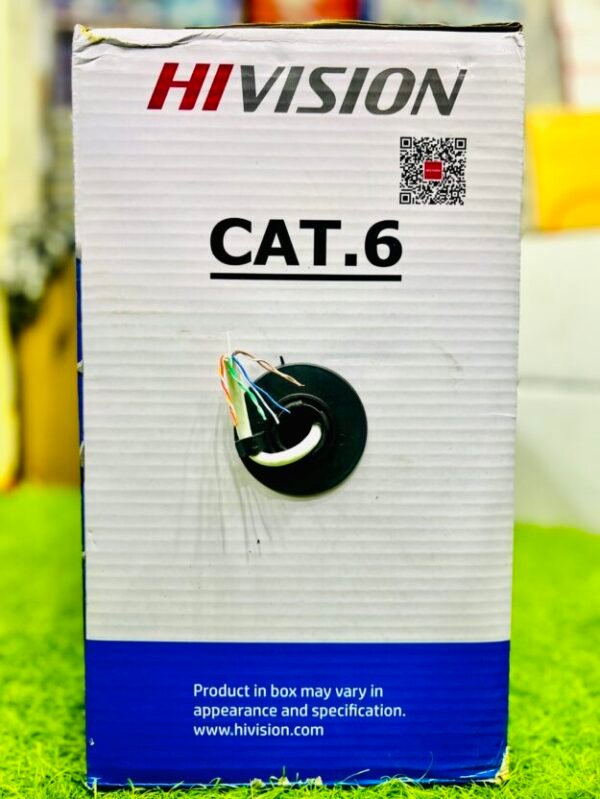

HIVISION UTP CAT6 24AWG 4PAIR Full copper 305M ROll

HIVISION UTP CAT6 24AWG 4PAIR Full copper 305M Roll – Product OverviewThe HIVISION UTP CAT6 24AWG 4PAIR full copper 305 m roll is a reliable Cat6 Ethernet cable designed for Gigabit networks. It combines solid 24 AWG copper conductors with flexible jacket options to meet indoor and outdoor installations. Choose U/UTP for standard LANs or shielded F/UTP and S/FTP when EMI protection is required.Technical SpecificationsCategory and PerformanceCategory: CAT6 – supports up to 1 Gbps and 250 MHz bandwidthMax recommended permanent link: 100 m (328 ft)Conductor and GaugeGauge: 24 AWG (0.51 mm) solid copper – lower resistance and lower attenuation compared to 26 AWGConductor type: Solid full copper recommended for best performance (avoid CCA for critical links)Cable Construction and ShieldingPairs: 4 pair, twistedU/UTP: Unshielded twisted pair for general useF/UTP or S/FTP: Shielded variants available for environments with electrical interferenceJacket OptionsPVC: Standard indoor jacketLSZH: Low smoke zero halogen for improved fire safety in confined spacesPE: Outdoor UV resistant jacket for direct burial or external wiringWhy 24 AWG Matters24 AWG is slightly thicker than 26 AWG. That means lower signal loss, better high frequency performance, and more reliable long runs while still remaining easy to terminate with standard RJ45 connectors. For PoE applications 24 AWG handles PoE and PoE (up to 30 W) well on typical runs. For PoE or very long runs consider 22 AWG or split the power load.Typical Use CasesHome and office LAN connections: PCs, routers, switches, wireless access pointsCCTV and IP cameras: works with PoE devices, verify power budget before deploymentSmart home and IoT wiring: reliable data for sensors and controllersStructured cabling installations where full copper conductors are requiredInstallation Tips and Best PracticesKeep cable runs under 100 m for full performance without active devicesUse shielded cable (F/UTP or S/FTP) and proper grounded connectors if EMI is presentChoose LSZH in corridors and confined spaces for safety complianceAvoid kinking and tight bends; follow bend radius recommendations from the manufacturerTerminate with rated RJ45 connectors and test each run with a network testerPrice Guide in Pakistan (2025)U/UTP full copper: Rs 150 – Rs 250 per meterShielded variants: Rs 200 – Rs 300 per meterCommon brands available: D-Link, TP-Link, Netlink, CommscopeHow to Choose the Right VariantConsider these factors when selecting your CAT6 cable:Environment: Indoor use pick PVC or LSZH, outdoor use choose PE black UV rated jacketInterference: Use F/UTP or S/FTP if near heavy machinery, fluorescent lighting, or power linesPoE requirements: Check total wattage and cable length; upgrade gauge to 22 AWG for PoE or long runsBudget: Full copper offers superior performance; CCA is cheaper but not recommended for critical linksFrequently Asked QuestionsIs this cable suitable for Gigabit Ethernet?Yes. The HIVISION UTP CAT6 24AWG cable supports Gigabit Ethernet at 250 MHz when installed correctly.Can I use this cable for PoE devices?Yes. 24 AWG full copper handles PoE and PoE for most runs. For PoE or maximum power over long distances, consider a thicker gauge or power splitting strategies.Buy and ConfigureNeed a custom length, advice on jacket type, or help with PoE power calculations? Contact us with your setup details and we will recommend the best HIVISION UTP CAT6 24AWG cable variant for your project. Category: Incubator and Poultry Industry Hamza traders
