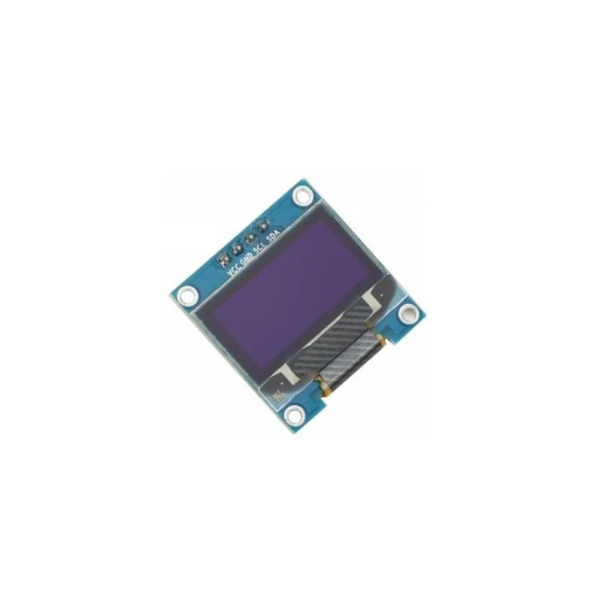

3.3V 0.96 Inch 128×64 I2C/IIC 4pin OLED Display Module BLUE

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display This 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C protocols. It is having a resolution of 128?64. The package includes display board, display, 4 pin male header pre-soldered to board. OLED monochrome 128?64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.   Interface pin for 4 PIN 128?64 OLED VCC: 3.3 volts ? 5 Volts GND: Ground SCL: Serial Clock SDA: Serial Data   Features of 4 pin 128 x 64 OLED Display     Super High Brightness (Adjustable)     Super High Contrast (Adjustable)     Embedded Driver/Controller     Display size: 0.96?     Resolution radio:128 x 64     Interface modes: I2C/IIC     working voltage: 3.3V     Control Chip: SSD1306 SKU: RM004805 Category: OLED Display Warehouse Code: R00015-S02-P06-Z01
