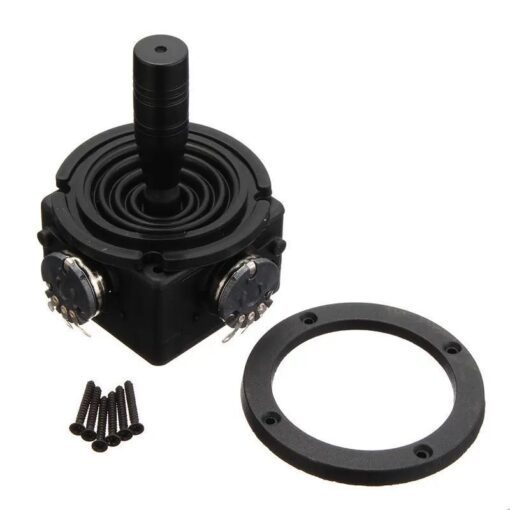

2-Axis JH-D202X-R2/R4 Joystick Potentiometer 10K Ohm Sealed PTZ Thermistor

The 2-Axis JH-D202X-R2/R4 Joystick Potentiometer 10K Ohm Sealed PTZ Thermistor is an input device that allows for simultaneous control of two axis of movement. It contains a sealed potentiometer with a resistance of 10K Ohms, which is used to detect the position of the joystick along its two axis. The potentiometer is sealed to protect it from dust and other contaminants, making it suitable for use in harsh environments. In addition, the Joystick Potentiometer 10K also contains a PTZ thermistor. This thermistor is used to measure temperature and is commonly used in Pan-Tilt-Zoom (PTZ) cameras. The thermistor allows the joystick to accurately control the position of a camera in both horizontal and vertical directions while also detecting any changes in temperature. Specifications: Resistance Value: 10K Resistance Tolerance: ±20% Independent Linearity: ±1% Resolution: Essentially Infinite Temperature Coefficient: ±400 ppm/°C Output Smoothness: 0.5% maximum X & Y Axis Electricity Corner: ±25° Z Axis Electricity Corner: ±45° Insulation Resistance: 50MΩ @ 500VDC, 60 sec. Restoration Error Rate: ±0.03 KΩ Life cycle: 500,000 cycle Operating Temperature Range: -10~ 80°C Application: Move photography and television control system Curative imaging system Film frequency compile and produce equipment Automated machine control Instruments for industrial and scientific us Package Includes: 1 x 2-Axis JH-D202X-R2/R4 Joystick Potentiometer 10K Ohm
