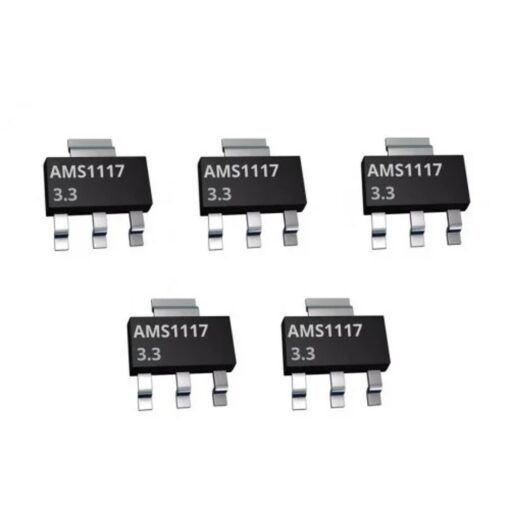

AMS1117 3.3V Voltage Regulator IC SOT-223 is a series of low dropout three -terminal regulators with a dropout of 3.3V at 1A load current. AMS 1117 features a very low standby current 2mA compared to 5mA of a competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. AMS1117 3.3V offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses a trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. Features: Low dropout voltage Load regulation: 0.2% typical Optimized for Low Voltage On-chip thermal limiting Built-in thermal shutdown Good noise rejection Standard SOT-223 packages Three-terminal adjustable or fixed low dropout Specifications: No. of Output: 1 Output Type: Fixed Polarity: Positive Input voltage: 1.8V- 15V DC Output Voltage(V): 3.3 Max. Output Current (A): 1 Operating Temperature (°C): -24 to 84 Load Regulation: 0.4% Max Line Regulation: 0.2% Max Dimensions (LxWxH) mm: 6.34 x 3.44 x 1.61 Application: High-Efficiency Linear Regulators Post Regulators for Switching Supplies 5V to 3.3V Linear Regulator Battery Chargers Active SCSI Terminators Power Management for Notebook Battery Powered Instrumentation Package Includes: 1 x AMS1117 3.3V 1A SOT-223 Voltage Regulator IC
