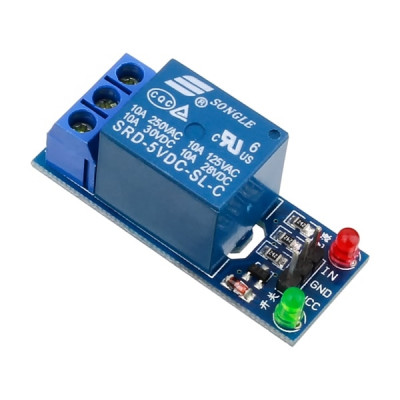

This is a 1 Channel 5V Relay Module without Optocoupler for Arduino, be able to control various appliances, and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Each one needs 15mA – 20mA driver current and Equipped with high current relay: DC 5V / 10A, AC 250V / 10A Standard interface that can be compatible with microcontroller. 5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current. Relay Module 5v 1 Channel is designed for switching only a single high-powered device from your Arduino. It has a relay rated up to 10A per channel at 250VAC or 30VDC. There are two LEDs on the relay module indicating the position of the relay. We have three channels of the relay broken out to screw pin terminals. Features: Equipped with high-current relay, AC250V 10A ; DC30V 10A Indication LEDs for Relay output status Equipped with screw holes for easy installation 5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Indication LED s for Relay output status. Specifications: Operating Voltage(VDC): 5 Max. Current(mA): 20 Channel: 1 Current Capacity at AC250V: 10A Current Capacity at DC30V: 10A Length (mm): 53 Width (mm): 28 Height (mm): 19 Weight (gm): 18 Package Includes: 1 x 5V 10A Relay Control Board Module without Optocoupler – 1 channel
