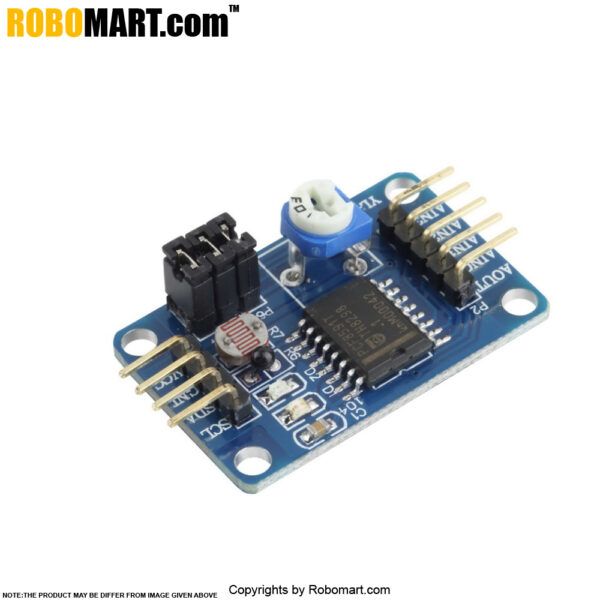

PCF8591 8-bit A/D – D/A converter

The PCF8591 is a 8-Bit A/D – D/A Converter in a single-chip, single supply low power 8?bit CMOS data acquisition device with four analog inputs, one analog output and a serial I?C?bus interface. Features of PCF8591 8-Bit A/D – D/A Converter: Single power supply. Operating supply voltage 2.5 V to 6.0 V. Low standby current. Serial input/output via I?C-bus. I?C address selection by 3 hardware address pins. Max sampling rate given by I?C-bus speed. 4 analog inputs configurable as single ended or differential inputs. Auto-incremented channel selection. Analog voltage range from VSS to VDD. On-chip track and hold circuit. 8-bit successive approximation A/D conversion. Multiplying DAC with one analog output. Applications of PCF8591 8-Bit A/D – D/A Converter: Supply monitoring. Reference setting. Analog control loops. DIY projects. Arduino projects. Raspberry-Pi projects. Electrical/Electronic projects. Also Searched as: pcf8591 pin diagram, pcf8591 arduino, pcf8591 arduino library, pcf8591 adc, pcf8591 application note, pcf8591 raspberry pi, pcf8591 datasheet. SKU: RM000451 Category: Audio Module / Amplifier Warehouse Code: R00005-S01-P05-Z01
