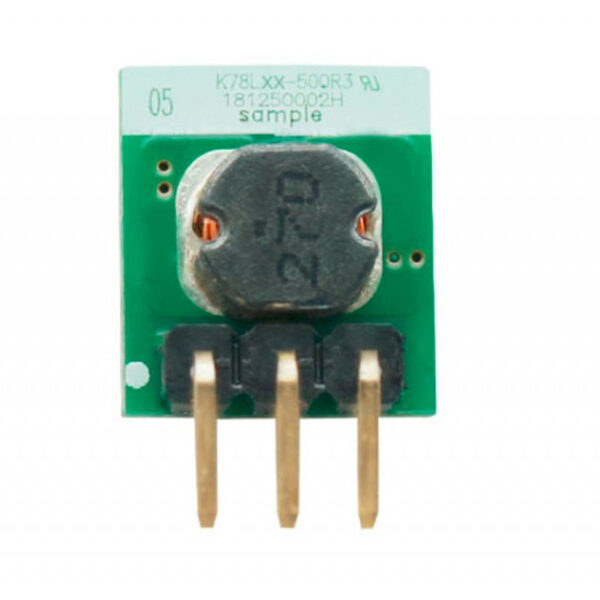

K78L15-500R3 series are high-efficiency switching regulators and ideal substitutes of LM7815 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation, and electric power. Features:- High efficiency up to 95% No-load input current as low as 0.2mA Operating ambient temperature range: -40? to 85? Negative output available Output short-circuit protection Pin-out compatible with LM78XX linear regulators IEC60950, UL60950, EN60950 approved Specifications:- I/p Voltage range:19-36vdc Nominal voltage:24Vdc O/p voltage:15V O/p current:500(mA) wattage:0.5W Isolation: No Package: SIP Package Includes:- 1 x K78L15-500R3 Mornsun 15V/-15V Output DC-DC Converter 0.5W High Efficiency Switching Regulator Module – SIP Package SKU: RM000532 Category: Buck Converter Step-Down Warehouse Code: R00000-S00-P00-Z00
